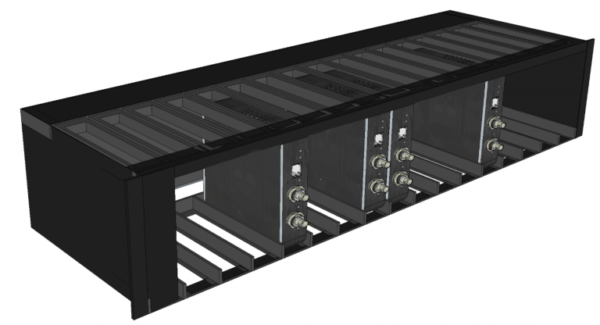

The Mini frame, TF-Mini-16, is a housing with space for up to 16 x Mini modules of any kind.
Description
The Mini frame uses the same PSU as the ONYXone family, TF1-XX.
The TF-Mini-16 comes with 2 x LEDs in the front to indicate which PSU are connected
Note that the TF-Mini-16 comes with one standard single PSU (redundant PSU is optional mod nr: T-PSU-100-240AC)
Technical Specifications
Features
- 16x BarnMini slots
- Any combination of BarnMinis
- Redundant power supply (optional)
- Secure locking
Additional information
| Fiber By Type | Ethernet, Tally, Throw-Down Brick, 3G, 2x3G, 12G, 4K |
|---|---|
| Fiber Mode | Single Mode |
