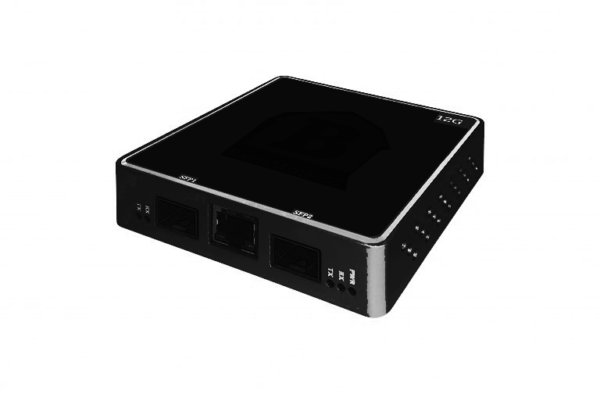

The Mini-122 is the predecessor of Mini-112. Additionally to all features of Mini-112 it is equipped with a control port for monitoring of SFP diagnostics and re-clcocker control.
Description
THe Mini-122 supports data rates up to 12Gbit/s. It can handle 12G and 6G SDI, 10G Ethernet and any other digital signal with a data rate lower than 12Gbit/s. It is equipped with a re-clocker which can be manually controlled via the control port. Inserted SFPs can be monitored and controlled with ONYX software like any ONYX unit. As any Mini module it is available as a standalone unit with a separate PSU or mounted into the Mini TF-Mini-16 frame that houses any combination of 16 x Mini modules with a common PSU.
- 2x Port for Enhanced Small Form-Factor Pluggable (SFP+), supports MSA-compliant and non-MSA transceivers
- Suitable for optical transceivers (single mode/multi mode), SFP/SFP+ media converters (HDMI, Ethernet, SDI, CVBS etc.)
- SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae, proprietary protocols
- Multirate reclocking of outputs 270Mbit/s – 3Gbit/s
- Hot pluggable/swappable
- 1x RJ45 connector
- 10/100 Mbit/s Ethernet
- 12-24V DC. Power supply included
- Redundant power supply available with BTF-Mini-16
- 92mm x 98mm x 22mm
- 200g
Additional information
| Fiber By Type | Ethernet, Tally, Throw-Down Brick, 3G, 2x3G, 12G, 4K |
|---|---|
| Fiber Mode | Single Mode |
