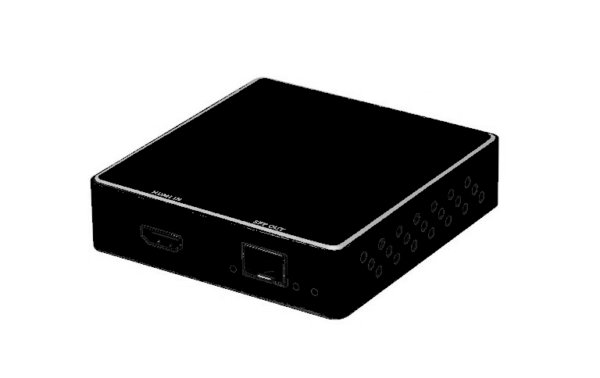

HDMI signal to any optical fiber SFPs. This gives you a great flexibility how far and into what part of the value chain you wish to take your HDMI signal.
Description
The Mini-102 is also popular due to the flexibility it brings. Imagine you need to go from multimode to single mode, taking an Ethernet signal into the fiber, using it as an affordable optical repeater etc. The Mini-102 is our “Swiss army knife”, you can change your application on the fly only by swapping SFPs. As any of the Mini modules Mini-102 can be used as a standalone box or in advanced systems with OnyxOne or any 3rd party solution.
Technical Specifications
- Fiberoptical port (SFP) , Duplex transcievers , LC/PC connectors (optional HDMI, HD-BNC, RJ45)
- SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
- Multirate reclocking of outputs 270Mbit/s – 3Gbit/s
- Hot pluggable/swappable
- Singlemode and/or Multimode
- 18 CWDM wavelength selections – ITU-T G.694.2
- 12-24V DC. Power supply included
- 92mm x 98mm x 22mm
- 200g
Additional information
| Fiber By Type | Ethernet, Tally, Throw-Down Brick, 3G, 2x3G, 12G, 4K |
|---|---|
| Fiber Mode | Single Mode |
