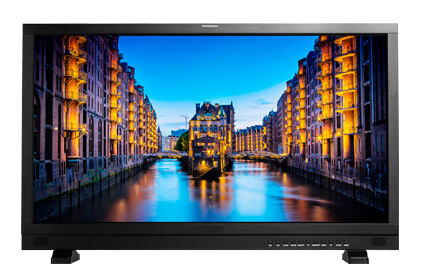

The 2460W a 3840×2160 resolution is a 24inch 4K UHD or Cinema QA Monitor. True 10Bit IPS LCD panel. Supporting various professional broadcasting features such as waveform,vectorscope,false color etc.Built-in 4x3G/HD-SDI inputs and 4 outputs,4 split windows support multiple input formats makes KCM-2460W an ideal monitor for color grading and real-time quality control in 4K production workflow. HDR, Pixel Measure.
– 12 Bit Video Processing
– 3D LUT Color calibration with LightSpace & CalMAN
– Color space: REC709/DCI-P3/EBU/SMPTE-C/REC2020/USER
– User 3D LUT file import
– 4x3G/HD-SDI inputs,4x3G/HD-SDI outputs
– 4xDVI/HDMI inputs and outputs
– 4K Mode,Quad-Split Mode,FHD single picture mode
– 4K 2 Sample Interleave (2SI)
– High Dynamic Range(HDR) display
– HDR display supporting PQ(SMPTE ST2084),HLG Hybrid Log Gamma
– Waveform, Vectorscope
– Picture Flip,Focus Assist
– False Color, Zebra
– Audio Level Meter (16CH for SDI, 2CH for HDMI)
– Scan, Markers, Blue Only/Mono Only
– Dynamic UMD(TSL3.1/4.0)
– LED Tally Light
– Remote control: Ethernet/GPI, RS422 In/Out
– Built-in AC IN and DC IN power supply
Quad Split Multiple Input Format
Quad split which transform one UHD into four FHD, each split window support multiple input format.
Advance processing technology
High-end video processing engine ensures clear and smooth picture quality.e.g. Feed professional chroma burst testing signals, the right top side slim red lines should be same the left side thick red lines, and clear display.
3D Lut Color Calibration
Integrated 3D LUT color calibration technology, are compatible with Lightspace and Calman.Support various color gamuts such as REC709/EBU/SMPTE-C/DCI-P3/REC2020/USER,user can import their own lut files into the monitor.Lightspace and Calman are compatible with popular colorimeters including CA210, CA310, CS200, CR100,CR250, Klein K10A, X-rite i1 Display OEM.
