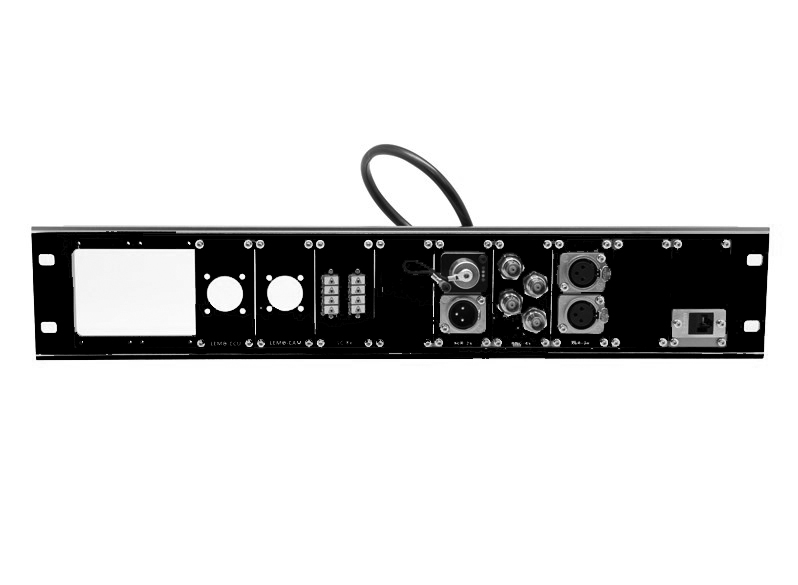

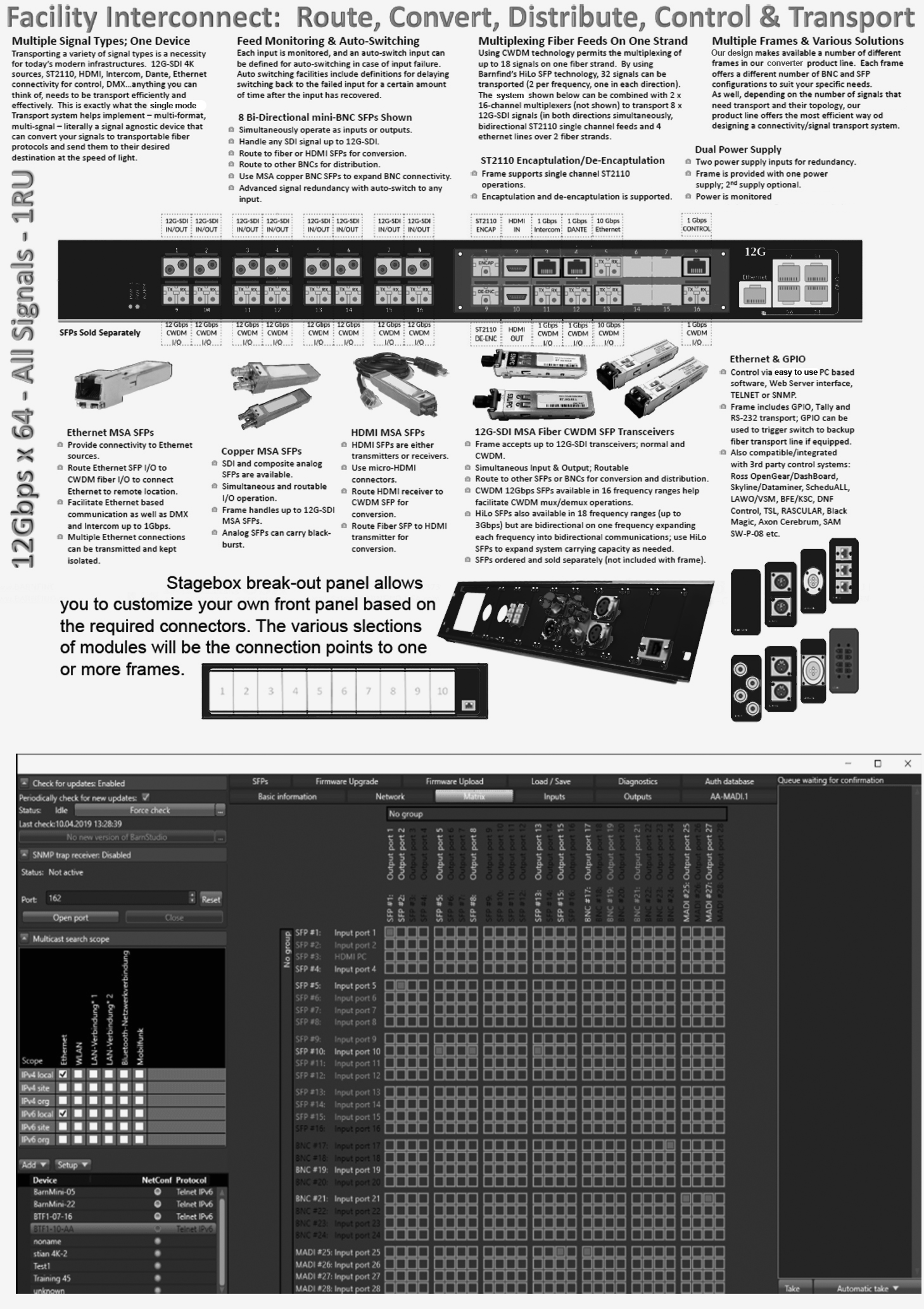

The Onyxfind Break-out panel allows you to customize your own front panel based on the required connectors. The various selection of modules will be the connection points to one or more frames.
Description
All modules are made of solid alluminium, with high performance connectors.
Note!
- The TSB-BASE blind cover can be customized to fit any other connector outside the Barnfind selection.
- The cables between Break-out panel and frames are not included.
Additional information
| Fiber By Type | 3rd Party Control, 4k60p Workflows, Built-in ROUTER, CAM-CCU, Ethernet, GPI/0, HDMI, Intercom, KVM, MADI, Rack Style, RCP, SDI to IP, SDTI(EVS), Serial, SMPTE 2022-6, Tally, Throw-Down Brick, Web Interface, 3G, 2x3G, 12G, 4K, 4K-60HZ, CVBS |
|---|---|
| Fiber Mode | CWDM, Single Mode |
