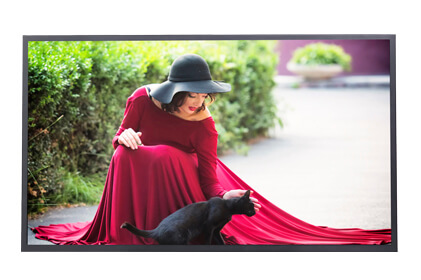

SI-KVM3260W(c-pnl)/2Ke/kn

Description

This 32 inch has Dual Enter-Menu Knobs, True 8bit LCD, 1400:1 Contrast. With 12 Bit Signal Processing, 3G and 4:4:4 Support.  This high performance LCD monitor offers native 1920 x 1080 full HD resolution, PBP/PIP,full video formats and professional features.True color processing with full broadcasting functions such as Waveform, Vectorscope ,Histogram,Pixel Meas.Rrange Error

– 32 1920×1080 Resolution
– LED backlight
– Wide Viewing Angle 178°(H)/178°(V)
– 3G/HD/SD-SDI Input&Loop through
– Composite&Component Input
– Support 3G-SDI, 4:4:4 signals (SMPTE 425M A/B)
– Dual Pictures (PIP/PBP) for 2 SDI Signals
– PIP/PBP Size / Position Adjustable,Alpha Blending( PIP )
– PIP/PBP in rapid swap
– Waveform(Y/CbCr/Wide Type,Waveform Alarm)
– Vectorscope (Vector Scale 75%/100%)
– Histogram (Y / RGB)
– Pixel Measure(Y/R/G/B Values Comparision)
– Picture Flip
– ×9 Zoom
– H/V Delay
– Focus Assist
– Blue Only/Mono
– False Color/Zebra
– 8ch Embedded Audio Meter(H/V)
– Full scan/Over Scan
– Time Code VITC1,VITC2,LTC
– PAL/NTSC/SECAM
– Various Markers
– Image Size Selectable
– RS-232 Remote Control
– Tally

Specifications

LCD
Display Size	32
High Resolution	1920×1080
Aspect Ratio	16:9
Wide Viewing Angle	178°(H) / 178°(V)
Pixel Pitch	0.3638×0.3638(mm)
Color Depth	1.07B 10-bit color depth that supports over 1-billion colors is 64 times richer than an 8-bit color display, re-creating colors softly and naturally without color banding
Back Light	LED
Brightness	360cd/m2
Contrast Ratio	1400:1

Input
2 × BNC	SDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)
3 × BNC	YPbPr/Video/Y/C
1 × HDMI/DVI/VGA	HDMI/DVI/VGA Input



Output
2 × BNC	SDI1/2 Channel Output (3G/HD/SD-SDI Auto-Detected)
1 × BNC	Video



Compatible SDI Formats
SMPTE-425M-A/B	4:2:2 YCbCr 10-bit	1080p(50/59.94/60)
	4:4:4 YCbCr/RGB 10-bit 4:4:4 YCbCr/RGB 12-bit	1080i(60/59.94/50)
		1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
	4:2:2 YCbCr 12-bit	1080i(60/59.94/50)
		1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
	4:4:4 YCbCr/RGB 10-bit	720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-274M	1080i(60/59.94/50)
	1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M	720p(60/59.94/50/30/29/25/24/23.98)
SMPTE-260M	1035i(60/59.94)
SMPTE-125M	480i(59.94)
ITU R BT.656	576i(50)



Audio In / Out
SDI Audio In	8 Channel Embeded Audio
Audio Meter Display(VU+PPM)	H/V Audio Level Meter Didsplay
Analog Audio Input	3.5mm Headset Switch Cable
Audio Headset Output	3.5mm Headset Jack
Built-in Speaker	2.5W×2



General
Operating Temperature	-10 50
Input Voltage	AC 100-240V 50/60Hz
Power Consumption	140W
Power-Saving Mode	Turn off unimportant Key Automatically if No Signal Input
Unit Dimension(w/o stand)	734.8×472.7×51(mm)
Net/Gross Weight	11.4KG / 13.34KG
Shell Materials	Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell
Accessory	Power Cord
Optional	DVI-HDMI adapter/Wall-Mount VESA bracket/Big Desktop stand
